I rode up to Rich's last Sunday - we were going to do a little work on the bike - and then go riding. The traffic jam on the BW Parkway did not augur well - an omen for what was to come, I guess.

Finally got there and we started pulling parts off the bike while it was cooling down. The radio comes out.

Rich uses shish kebab skewers - they're reusable. I have a very small scratch awl in the tool kit I use to remove the radio.

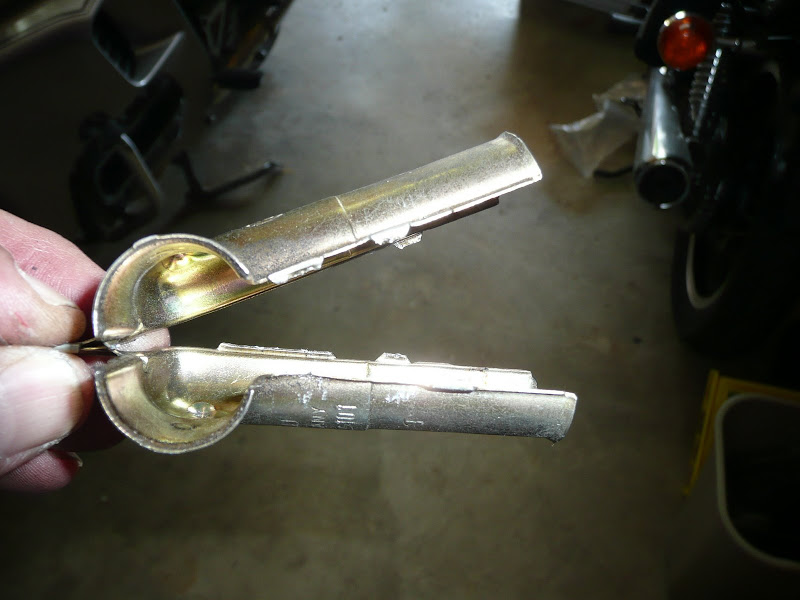

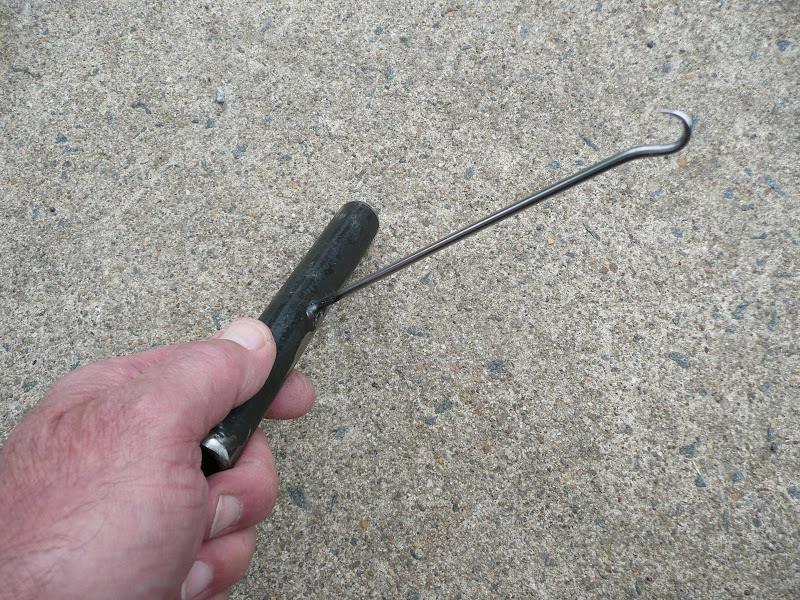

Rich has this cool little tool for pulling the spark plug boots.

The handle is kind of small - if the boots don't have silicone on them, they can be very difficult to pull off. Make sure there is nothing sharp behind you when you go flying backward.

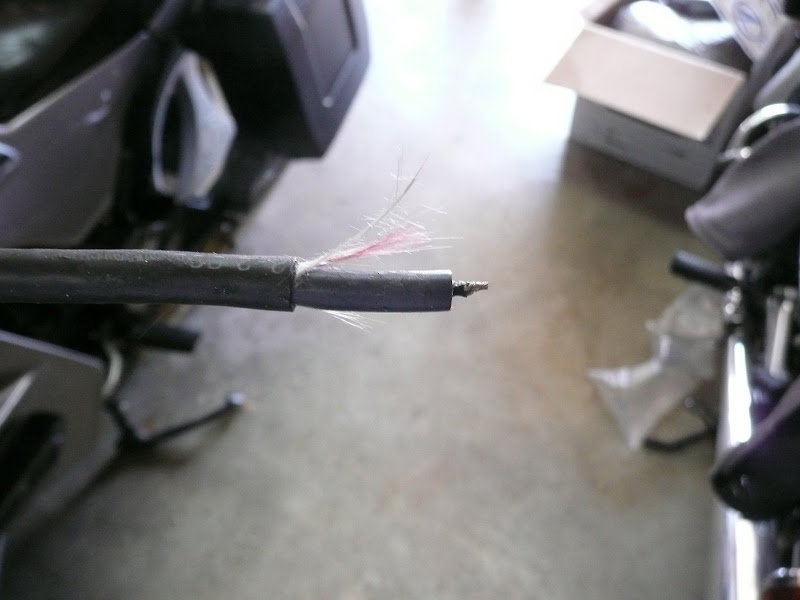

The first two wires from the front (#1 and #2) have a little slack - helpful when the boot lets loose and sends you rapidly away from the bike. The third wire is shorter.

Ooops... it takes Rich a little while to take the boot apart

and effect a repair. HINT Change plugs one at a time. Remove the plug lead/wire for the plug you are changing from the coil and make sure the cable is free - that way the entire cable goes with you in one piece when you go flying backward!

Got the iridium plugs in - and a new air filter. The NGK iridium plugs I got did not come with the little screw on caps. Had to buy a set of cheap NGK plugs just to get the threaded caps. If you switch to NGK iridium - make sure you have threaded caps available.

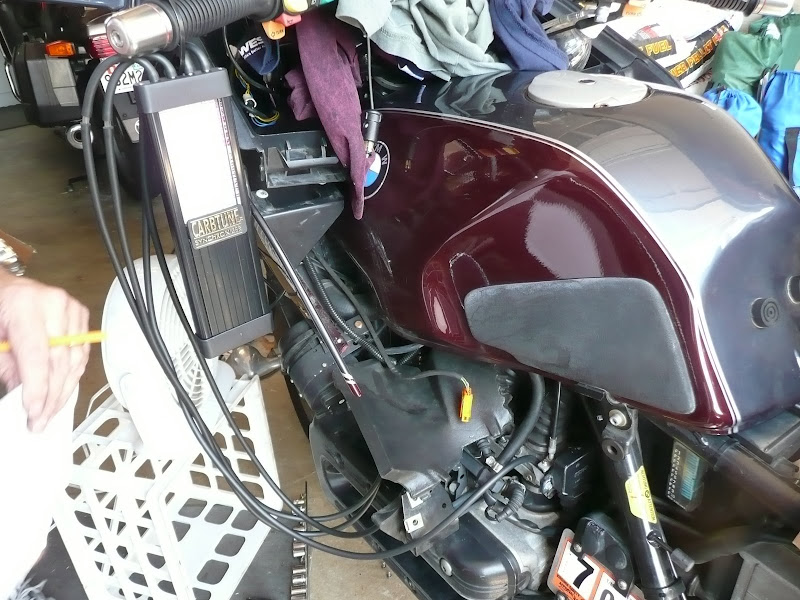

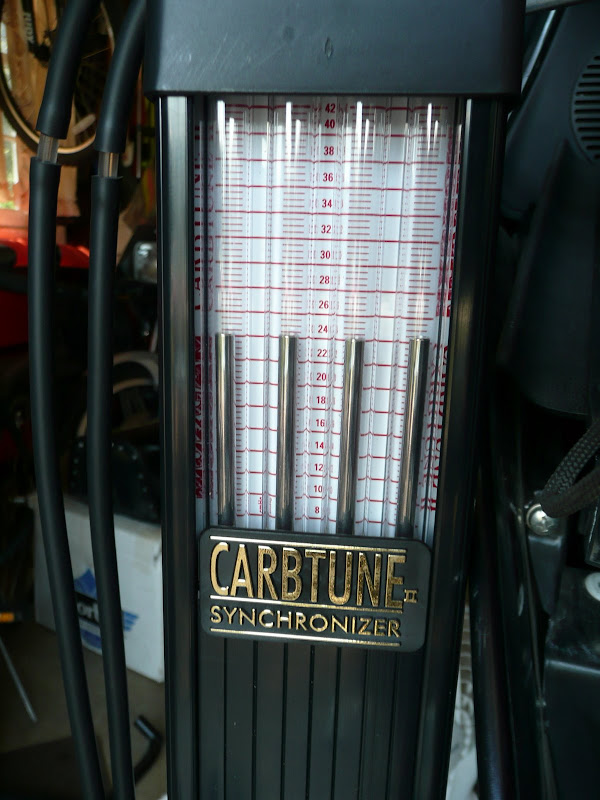

Here's the Carbtune connected - synch the butterfly valves first

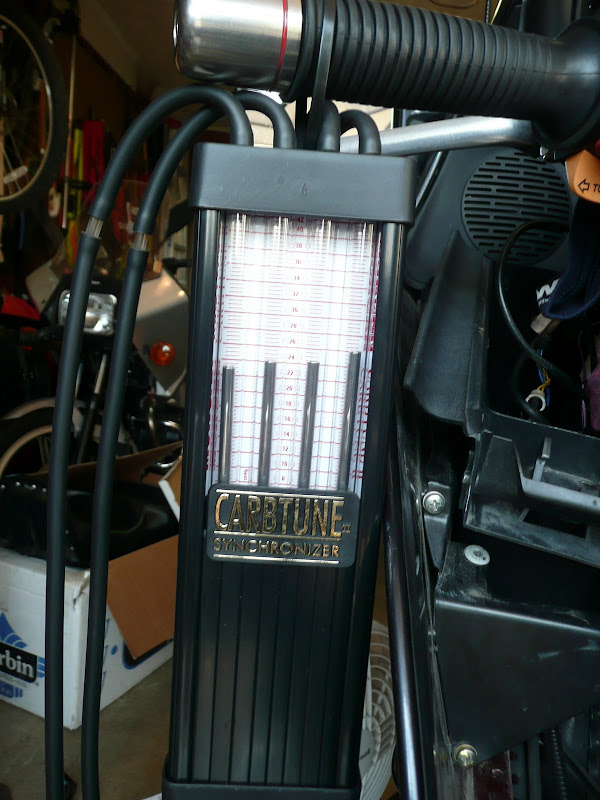

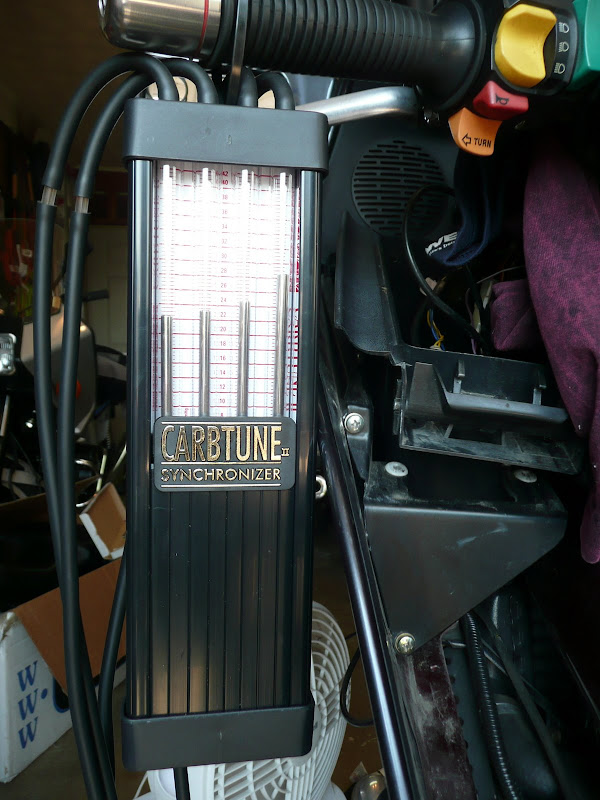

Initial reading

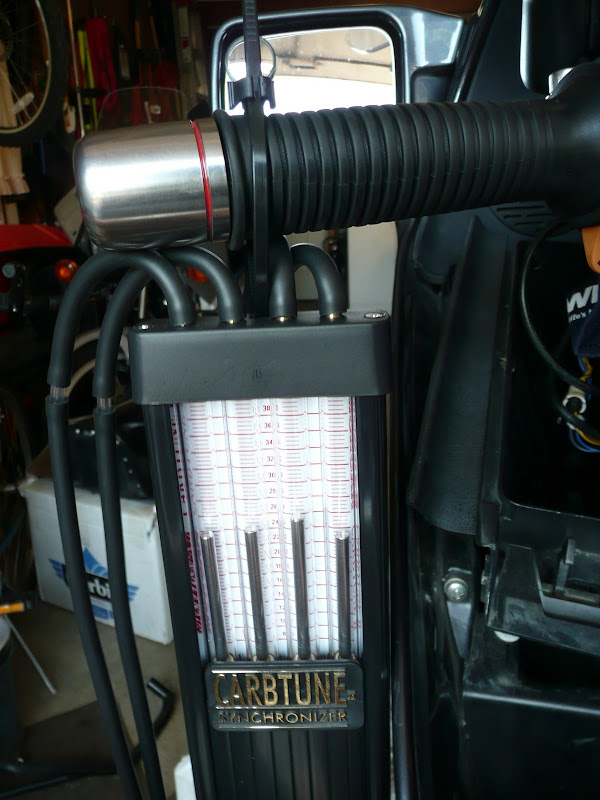

About halfway through

Done with the butterfly valves

And the throttle bodies

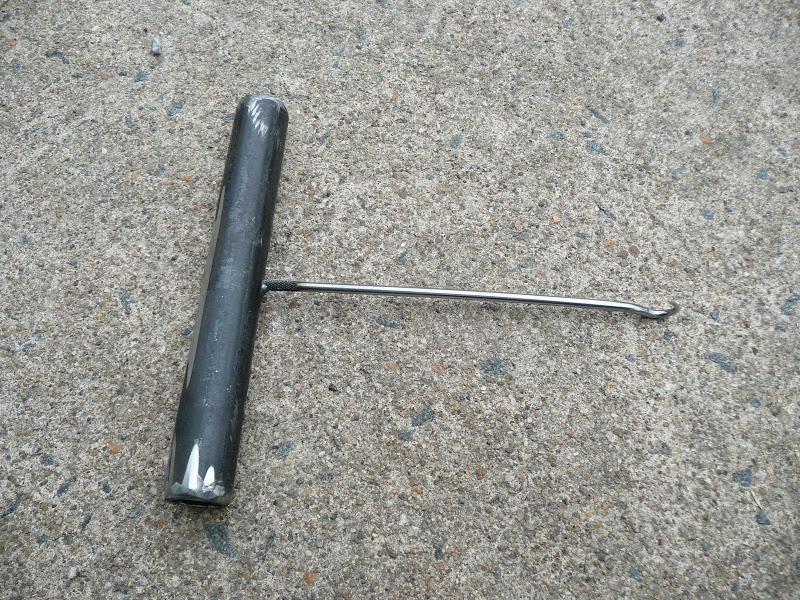

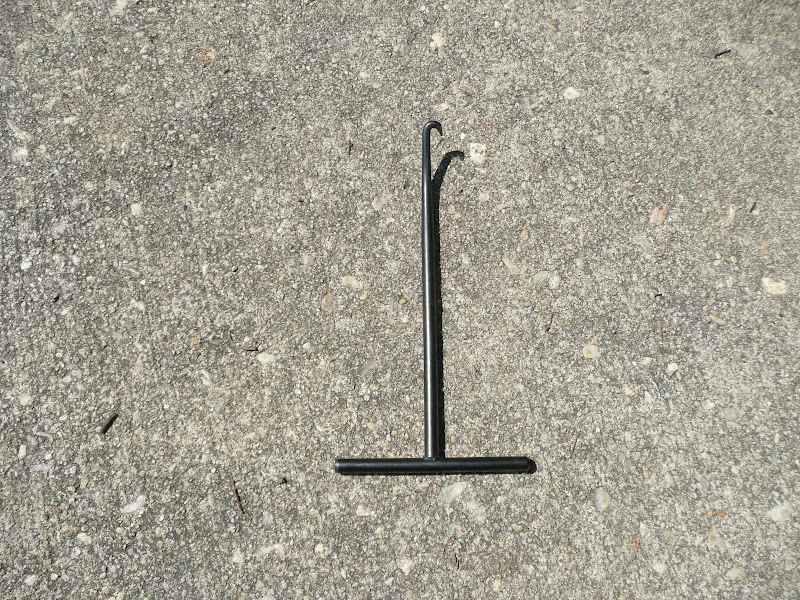

I didn't have one of those cool little tools for pulling the plug boots. A trip to Sears for a 4 pack of pick tools, $9.99 + a trip to the local welding shop, $42.50 = an easy to use boot puller - priceless. If you live in a part of the country that has fabrication and welding shops on every other corner, you could probably get that little job done for $10 or $15 - I'm lucky to even have a welding shop that charges outrageous prices...

To facilitate boot removal in the future, use this

5/16" fuel hose is perfect to slide over the tab on the boot cover

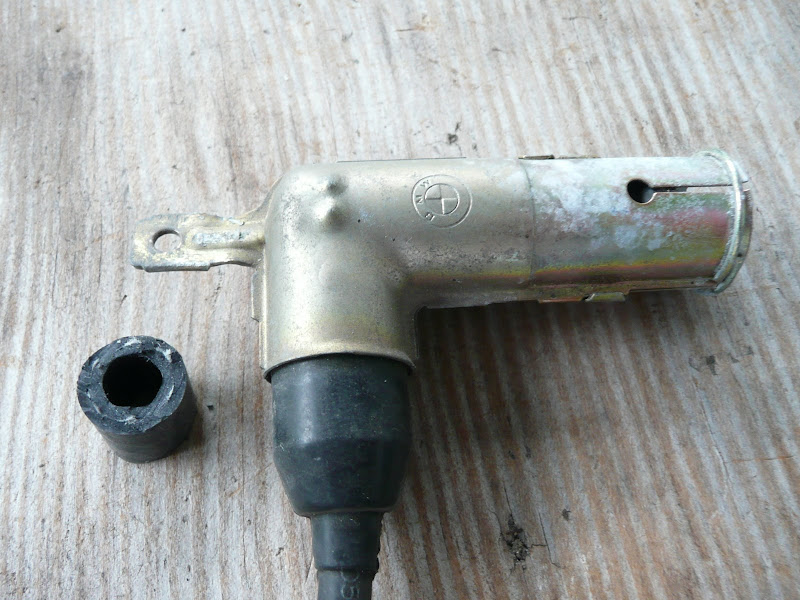

Make sure the piece of hose is short enough to leave the hole in the tab showing

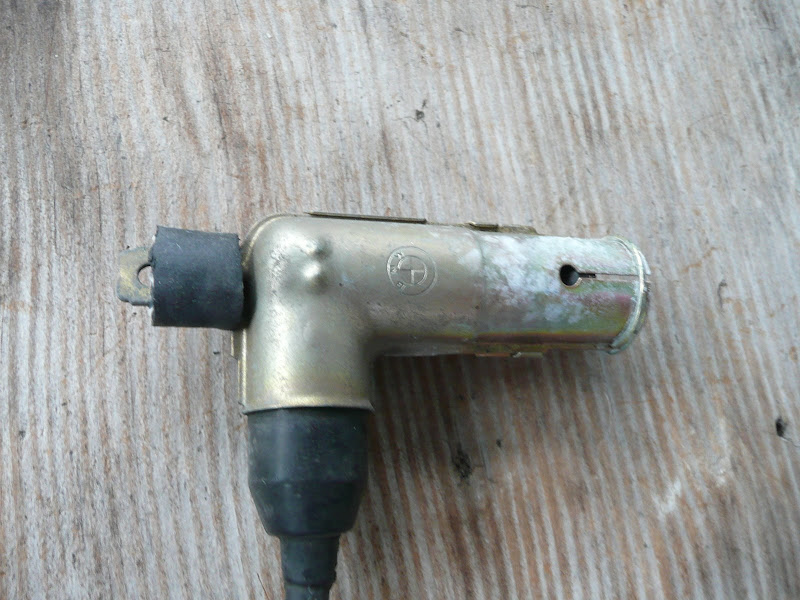

Final result

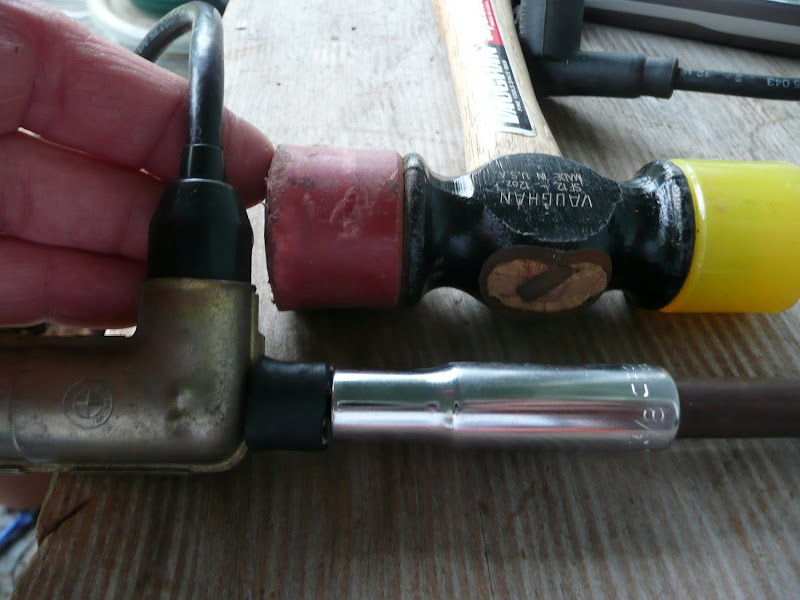

This gives you a little cushion between the plug boot and the socket - should you have to use the mallet.

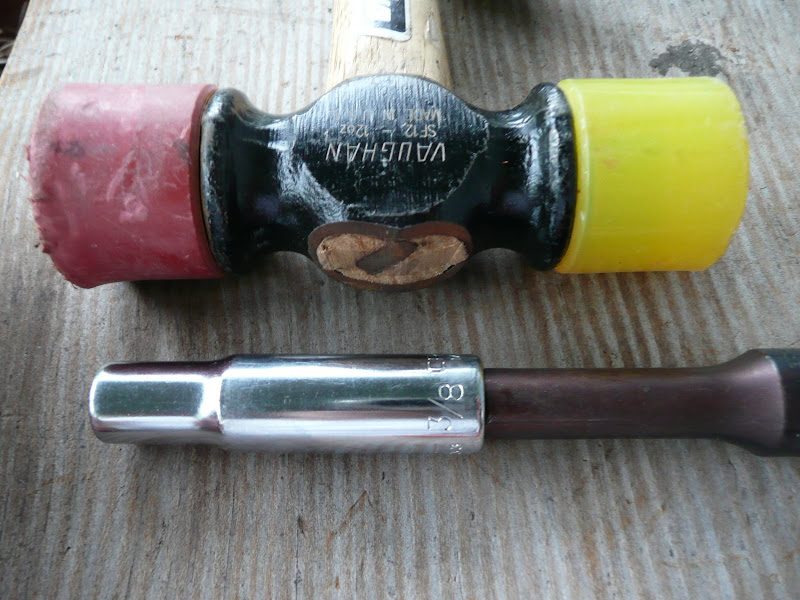

Since you've used silicone grease on the boot, you probably won't need the rubber mallet - you should be able to push the boot right on - a 3/8" or metric equivalent socket with an extension bar works well. If you don't feel the boot snap on, a light tap with the rubber mallet will get the job done

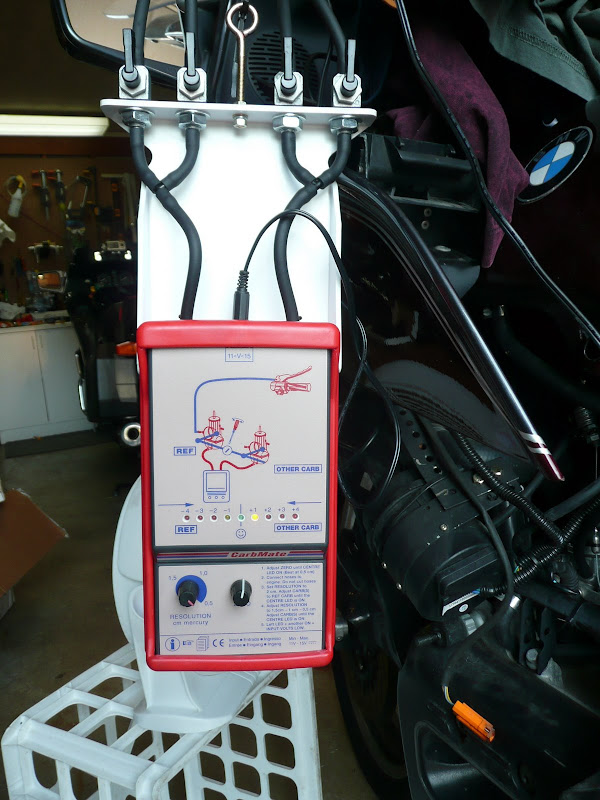

I initially wanted to do a comparison between Rich's Carbtune and my Carbmate - but my battery died. I plugged my ChargX in, but it's too slow. We connected Rich's battery charger and got the bike running again.

Rich thought I forgot to put the sidestand down

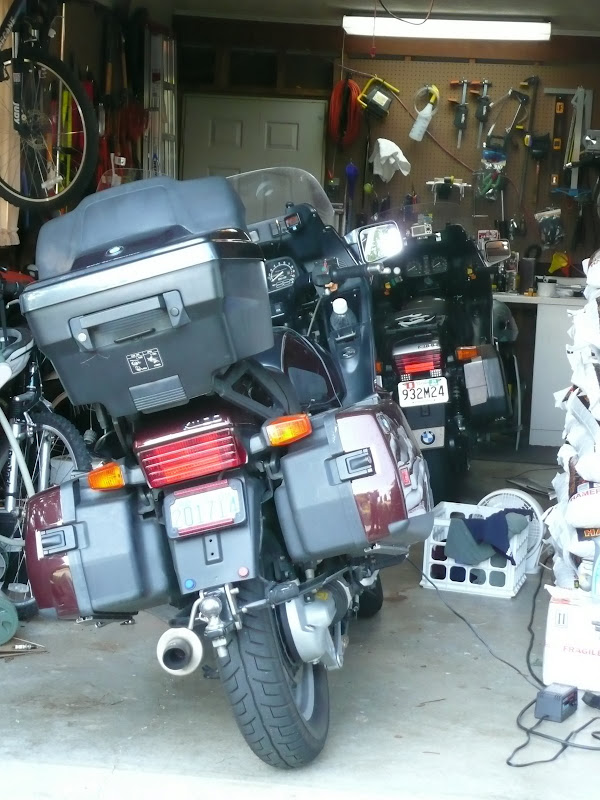

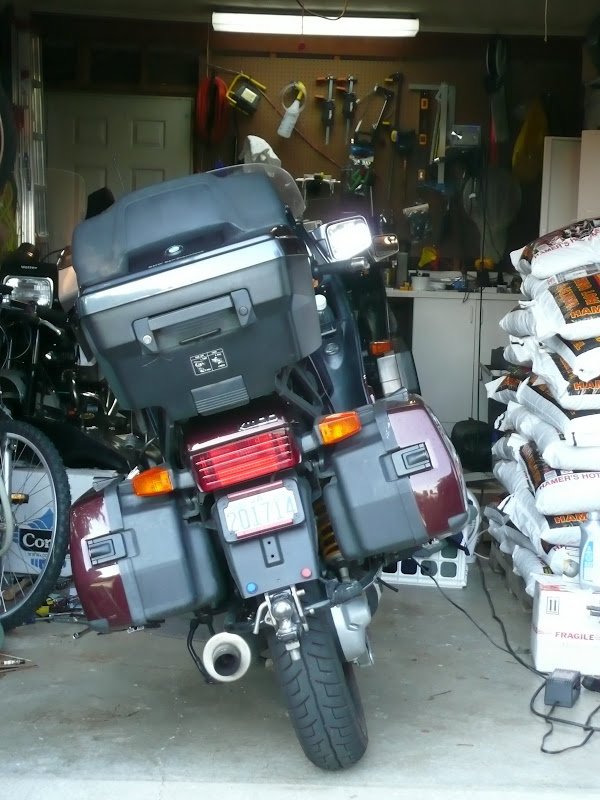

If the battery hadn't died, we could probably have put the bikes side by side so you could get a better idea of the lean angle on my K. Rich felt sorry for me - and the K - and gave me a sidestand puck he realized he couldn't use. Thank you, Rich Very Happy

. Apparently Rich's bike was lowered by the previous owner - the puck would leave his bike almost vertical. I'm used to the lean angle of the K on the sidestand - haven't ever given it too much thought. I'll definitely try the puck, though. When I park the bike, I have to make sure it's on a fairly level surface - with just a little slope, it leans way, scary over.

Rich's plug wire repair got me home - the plug wire has been replaced. The air filter we took out had about 16,000 miles on it - it was pretty clean. I kept it - I'll blow it out with the air gun and put it back in when this one needs to be replaced.

The new Odyssey PC680 battery will be here tomorrow. They only list it fitting through '95, but the dimensions seem to be the same as the Panasonic batteries I've been using - it should work.

9/01/08 Odyssey update - I don't know if I got the wrong Odyssey battery, or if they simply don't make one that works with our bikes. I had to straighten the end of the positive cable, and use one of the bolts that came with the battery to bolt the + cable and the other stuff I have connected to that terminal down flat to the battery. I also had to straighten one of the ground leads - not the one with the heavy angle piece, and use one of the L brackets that came with the battery for the ground side of everything. I guess I should try to get some pix of that set up for you in case you're interested in switching to an Odyssey. http://www.odysseybattery.com/batteries.html

Even after doing all that, the positive bolt still stuck up a little more than I was comfortable with. I have two layers of epdm roofing material (kind of like a very thick inner tube, but with stranded fiberglass in it) glued to the bottom of the Motronic bracket. To keep the + bolt head from wearing on the epdm, I added two large flat rubber washers that fit over the + bolt head.
